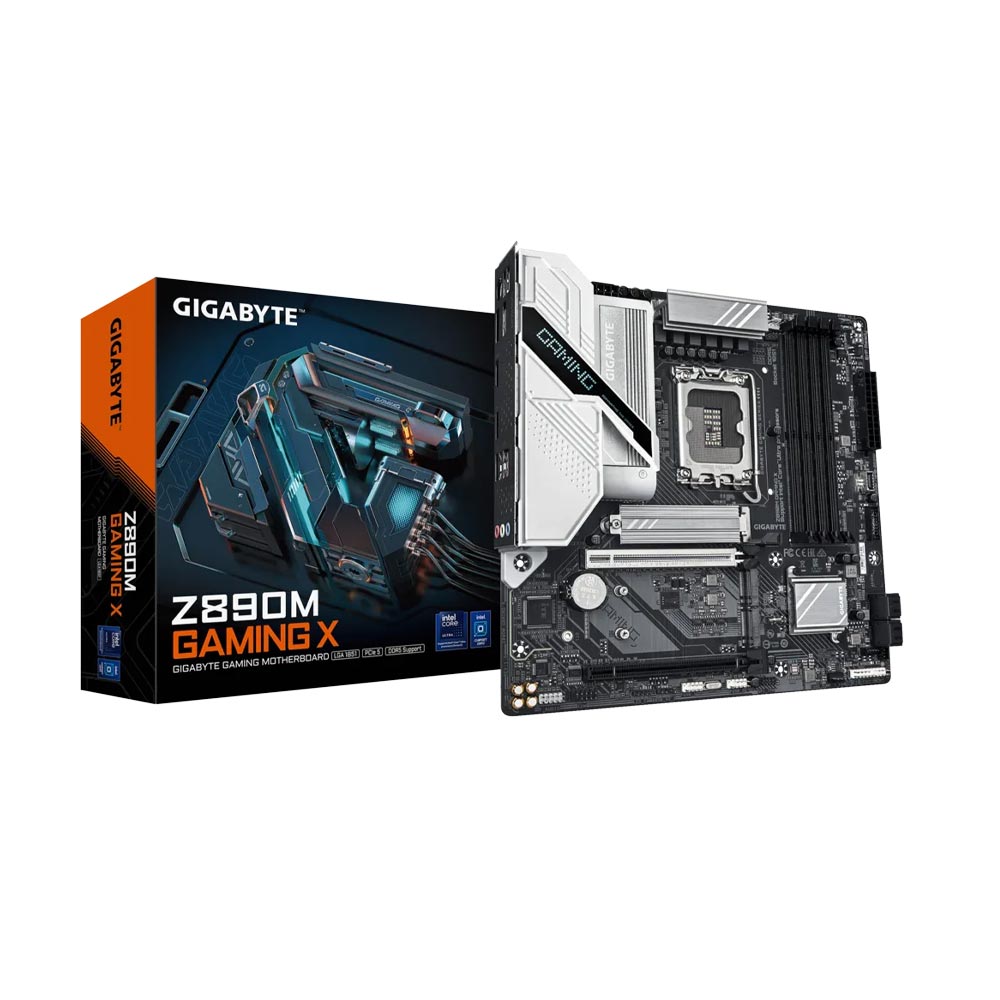

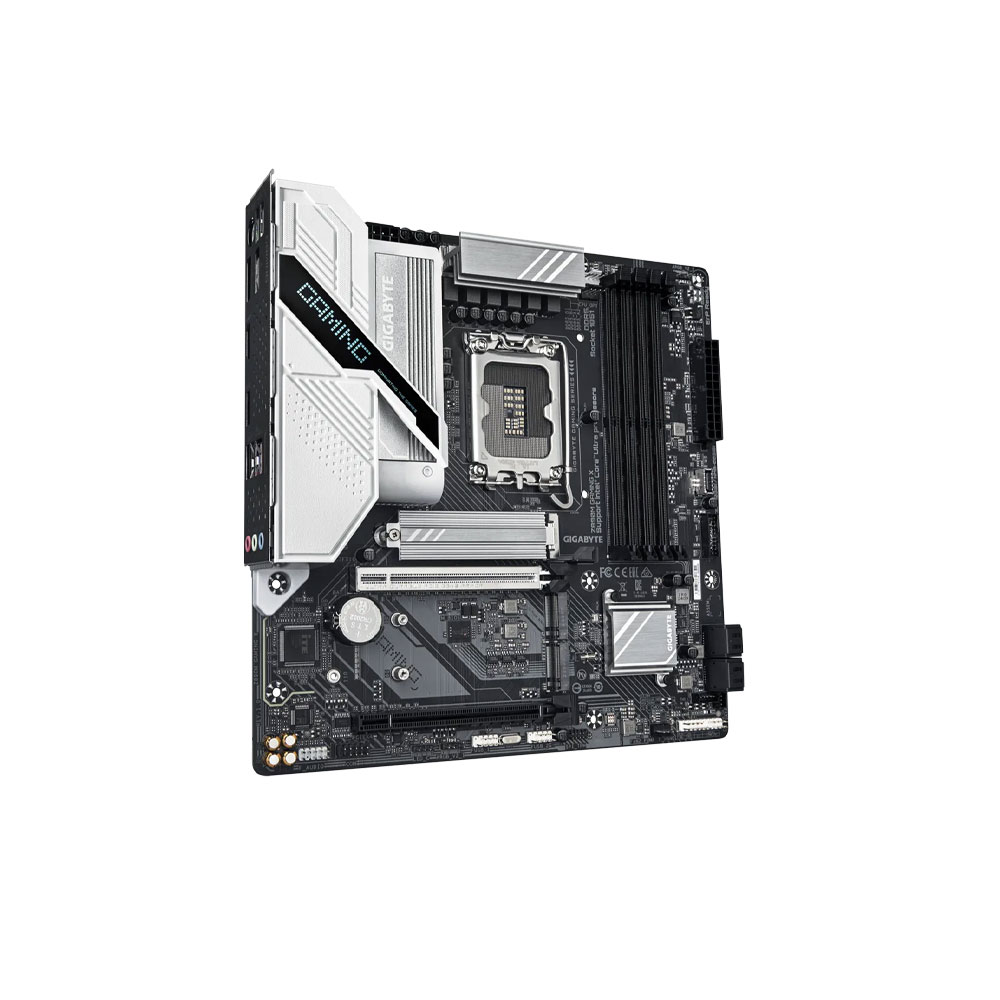

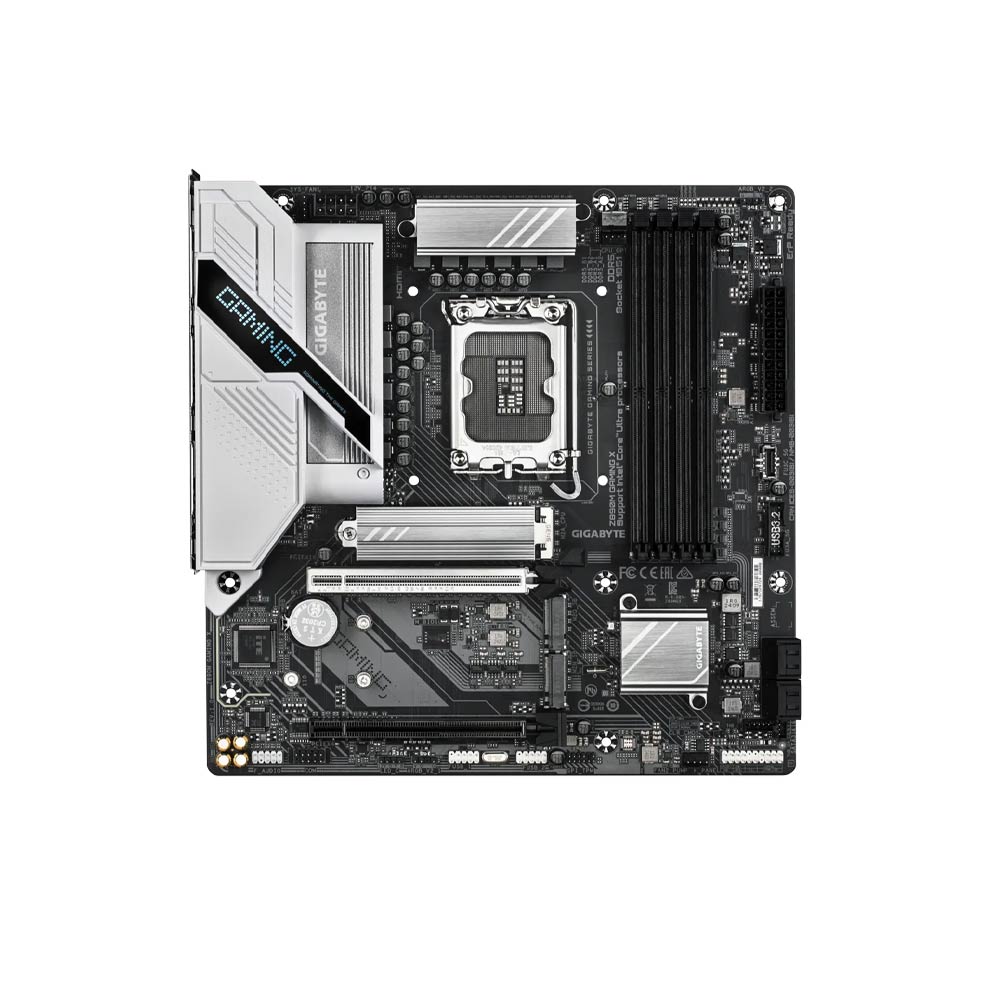

Mainboard Gigabyte Z890M GAMING X DDR5

Sản phẩm

bo mạch chủ

Tên Hãng

Gigabyte

CPU hỗ trợ

LGA1851

Chipset

Intel Z890 Express Chipset

RAM hỗ trợ

Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module

Khe cắm mở rộng

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Ổ cứng hỗ trợ

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

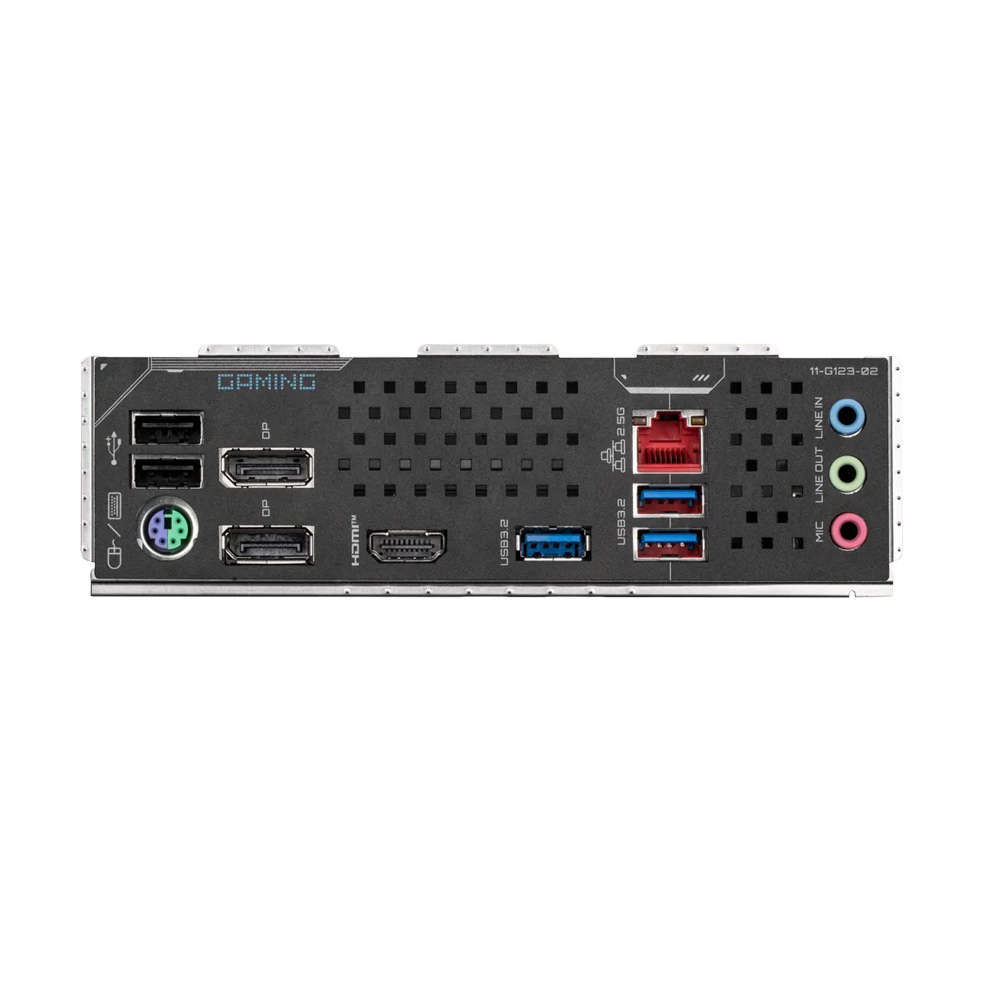

Cổng kết nối (Rear Panel)

1 x PS/2 keyboard/mouse port
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x RJ-45 port
3 x audio jacks

LAN

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 24.4cm
