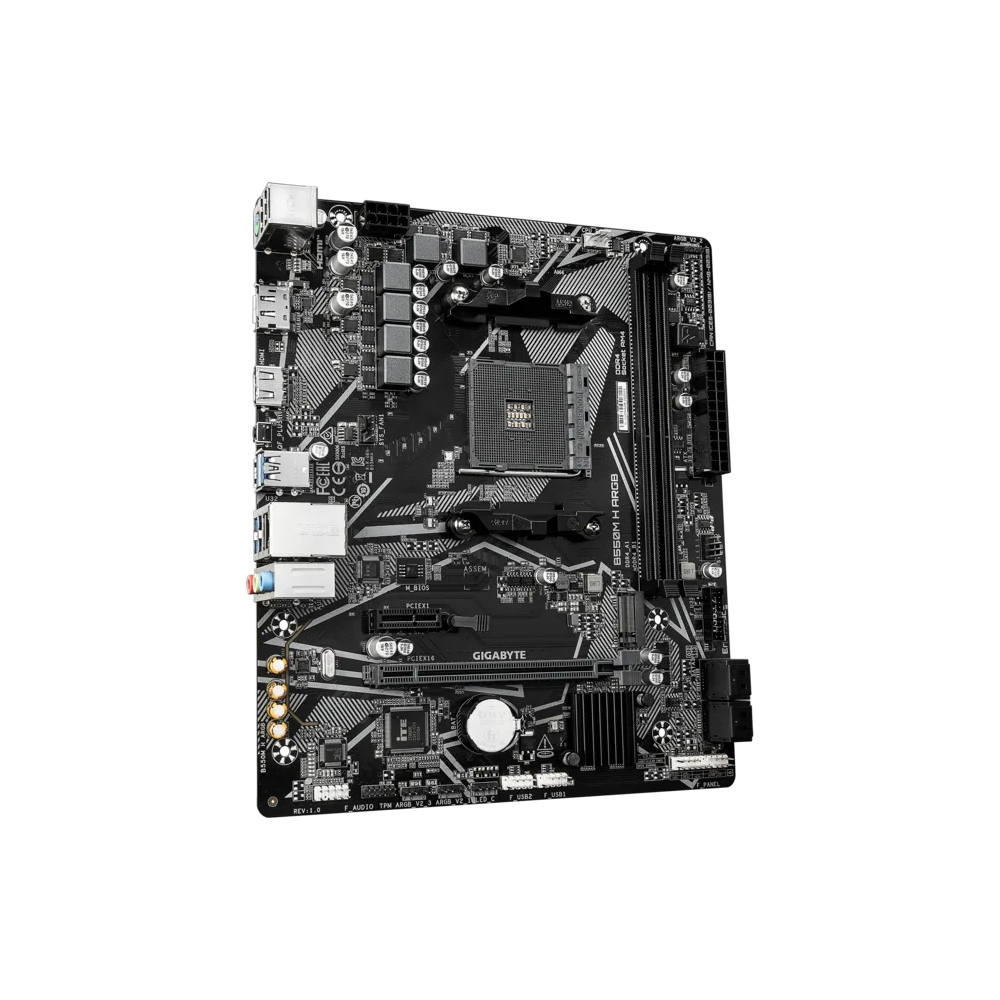

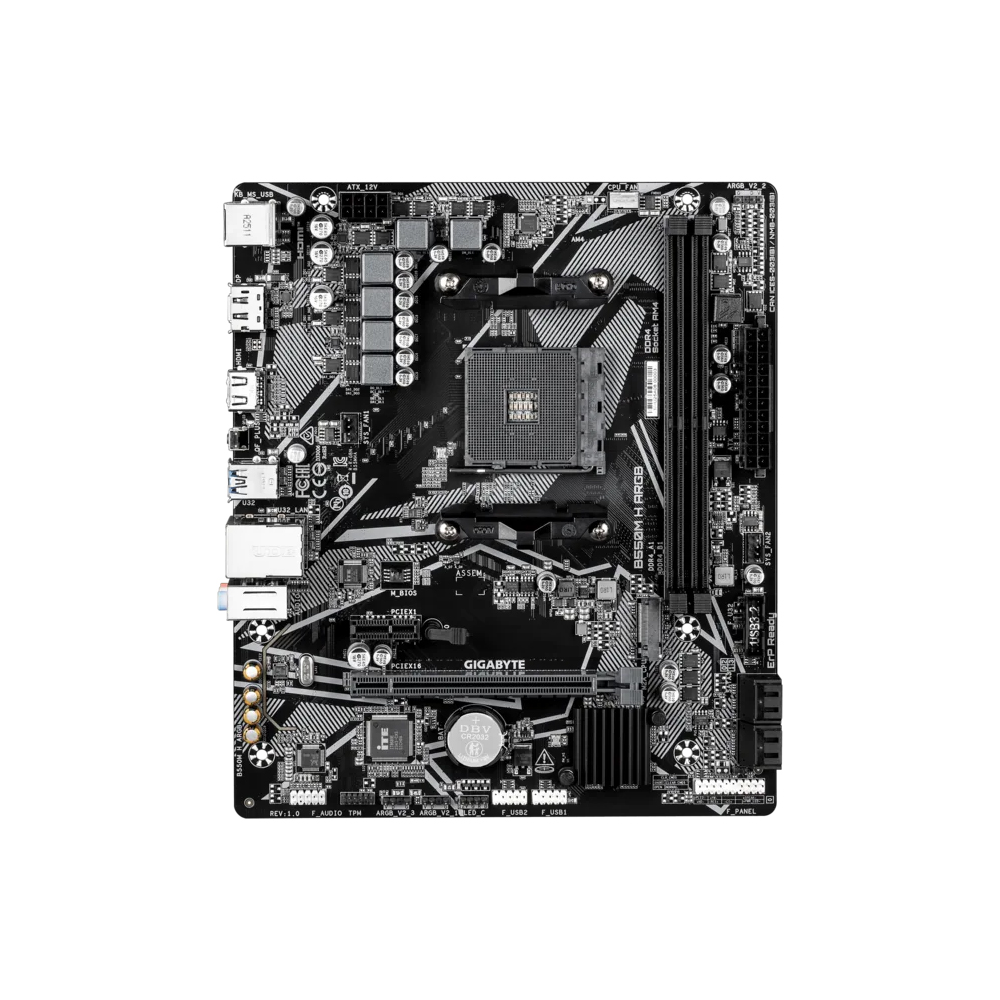

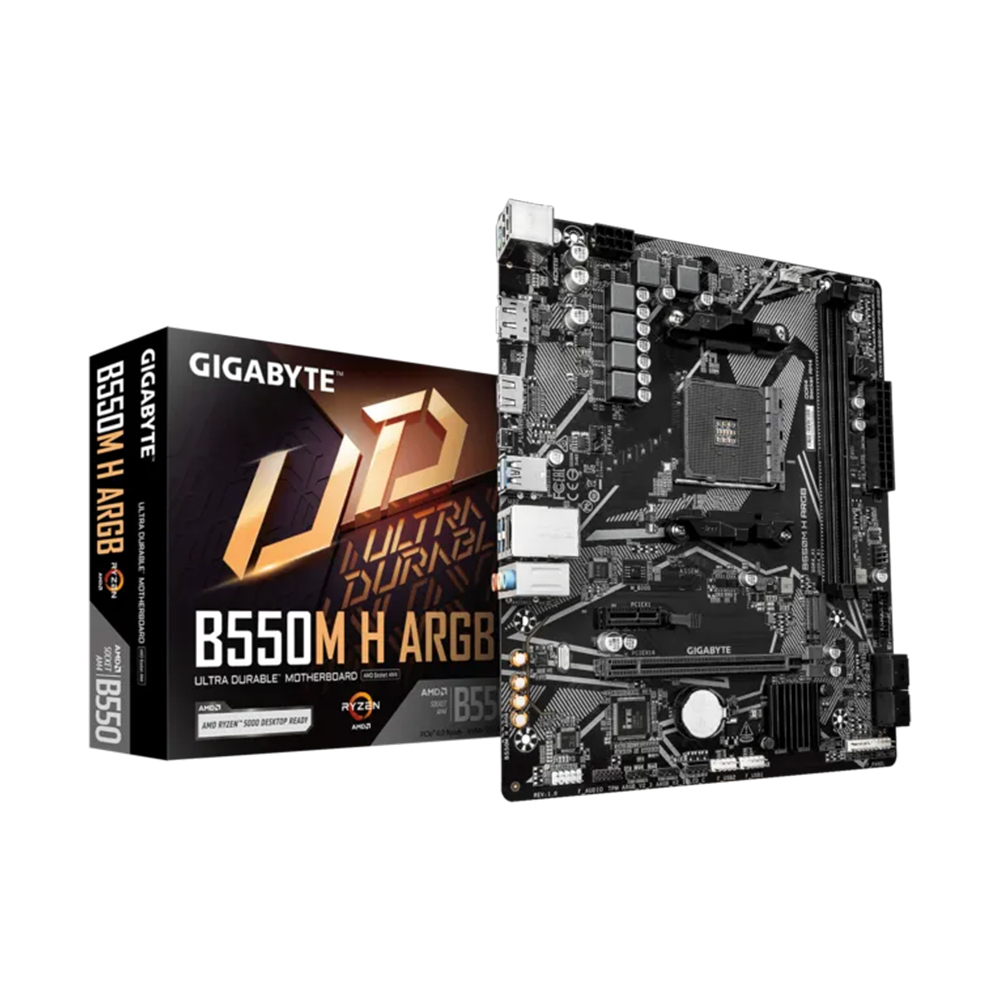

Mainboard Gigabyte B550M H ARGB

Sản phẩm

Tên Hãng

Gigabyte

Model

CPU hỗ trợ

AMD

Chipset

• AMD B550

RAM hỗ trợ

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

• 1 x PCI Express x16 slot, integrated in the CPU:
   AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
   AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode
  Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Ổ cứng hỗ trợ

• 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
  - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

• 1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  1 x Clear CMOS jumper

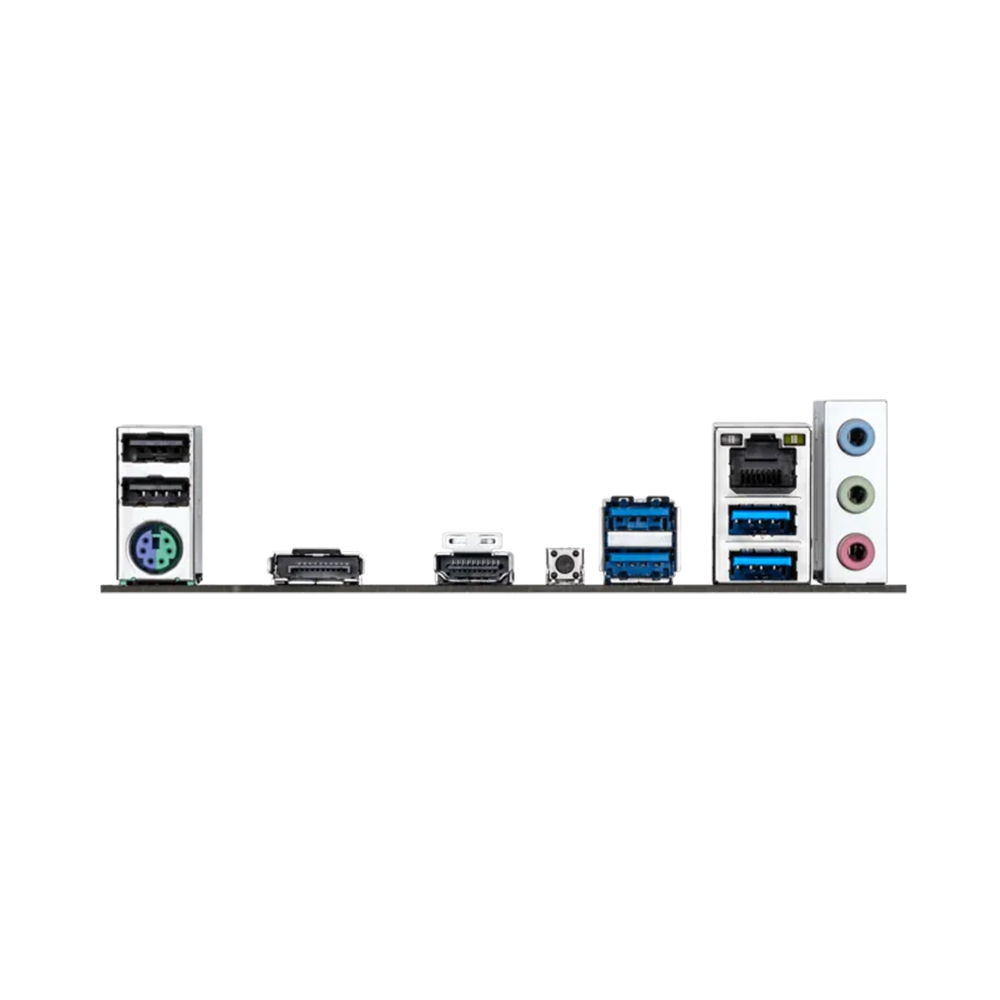

Cổng kết nối (Back Panel)

2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort*
1 x HDMI port*
1 x Q-Flash Plus button
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

LAN / Wireless

• Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Kích cỡ

• Micro ATX Form Factor; 23.3cm x 19.8cm
